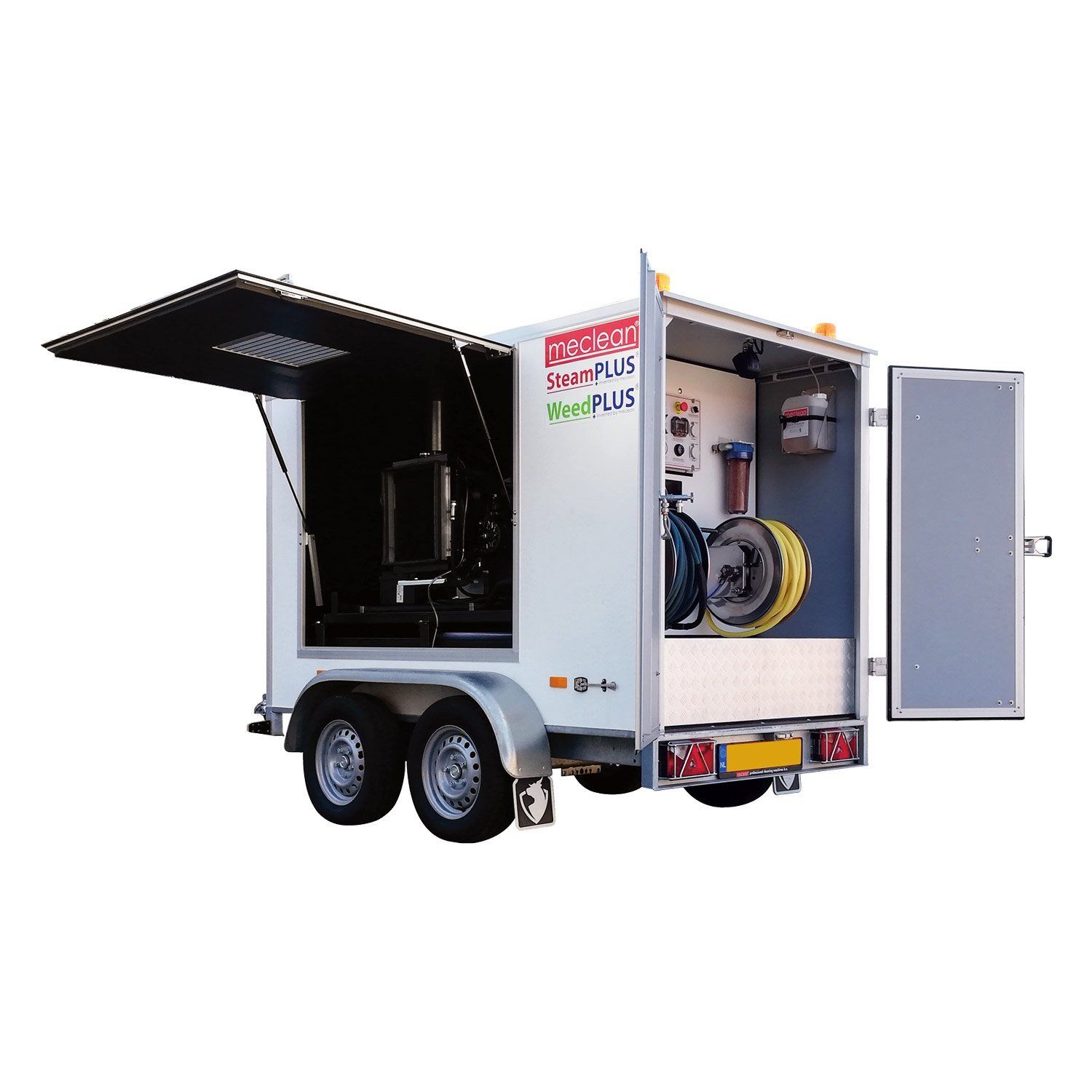

High-pressure trailer HDT 350/18 DUO

HDT 350/18 DUO high pressure trailer

Meclean High-pressure trailers are developed and built in the Netherlands and are equipped with mechanical technology instead of electronics as much as possible. The unique options SteamPLUS®, AquaPLUS® and WeedPLUS® create more possibilities and opportunities.

Meclean diesel powered high-pressure trailer HDT 350/18 DUO
Meclean SteamPLUS

City skyline

Button
Meclean AquaPLUS
Photo By: John Doe
Button
Meclean WeedPLUS

Birthday Sparks

Button

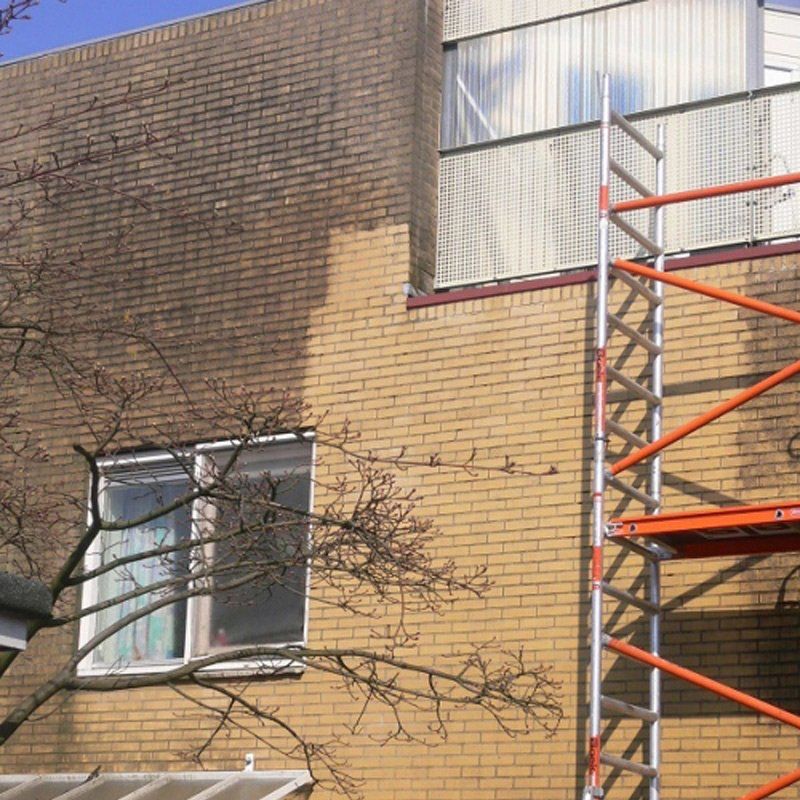

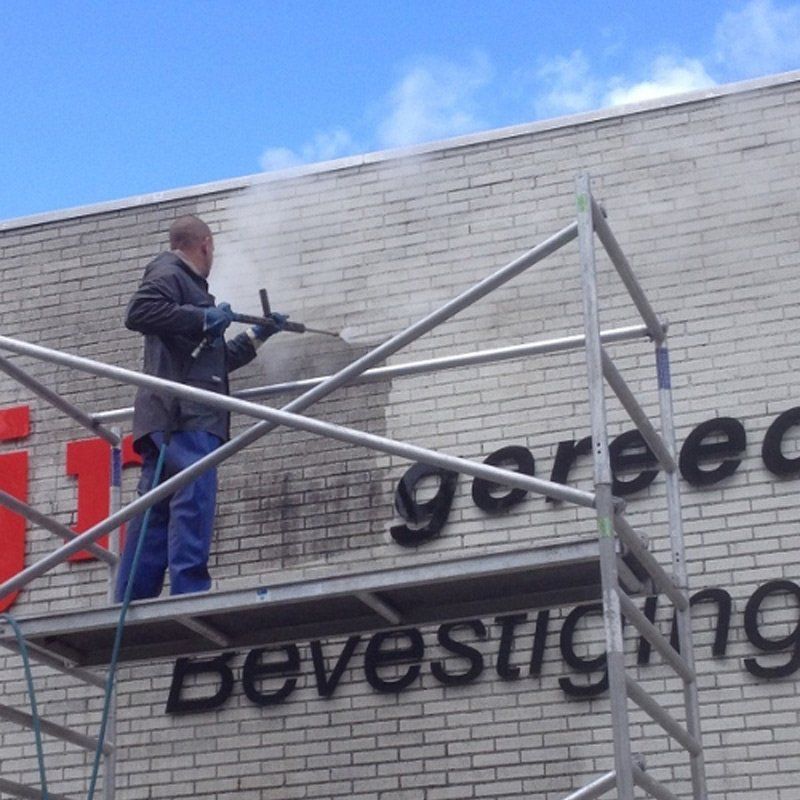

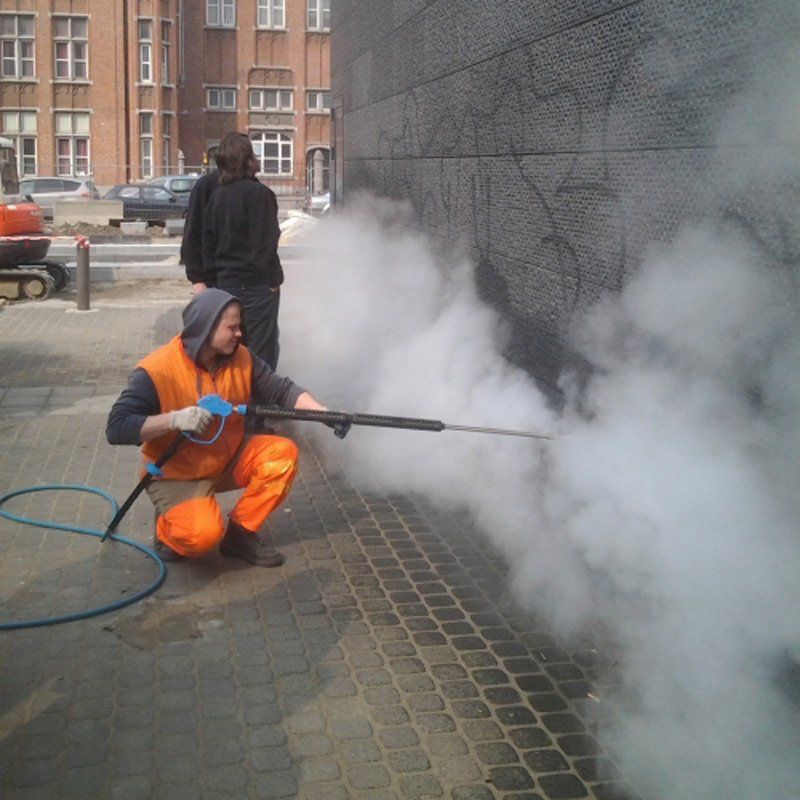

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Facade cleaning with SteamPLUS

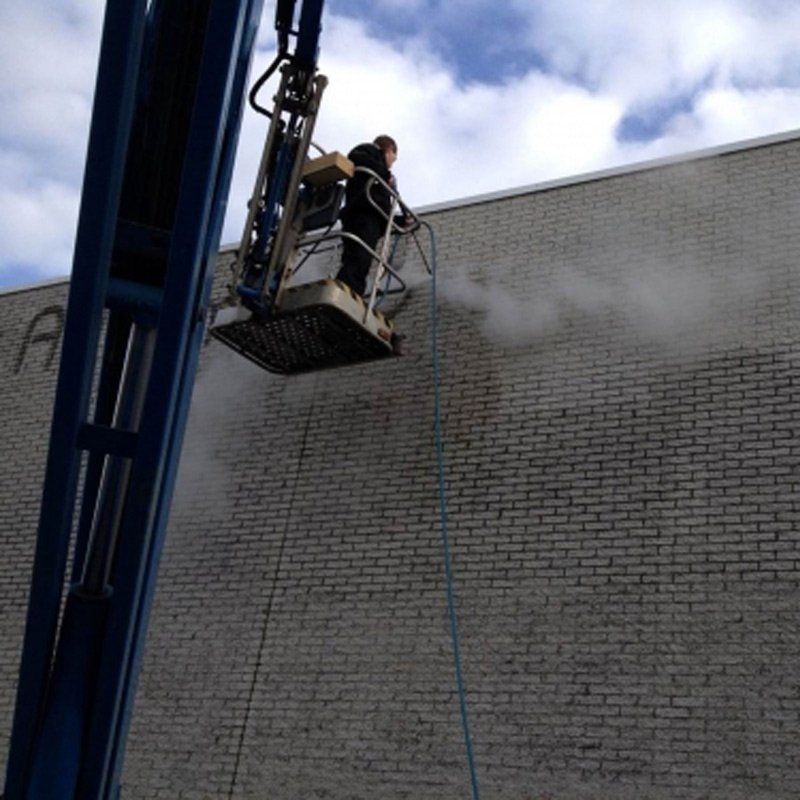

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Facade cleaning with SteamPLUS
Meclean diesel powered high-pressure trailer HDT 350/18 DUO Facade cleaning with SteamPLUS

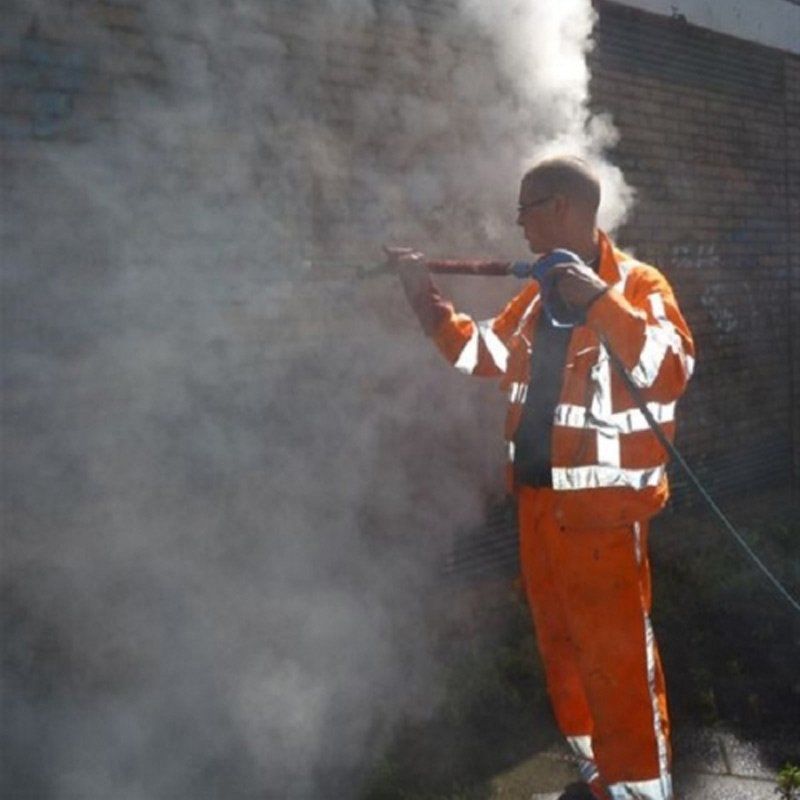

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removing graffiti with SteamPLUS

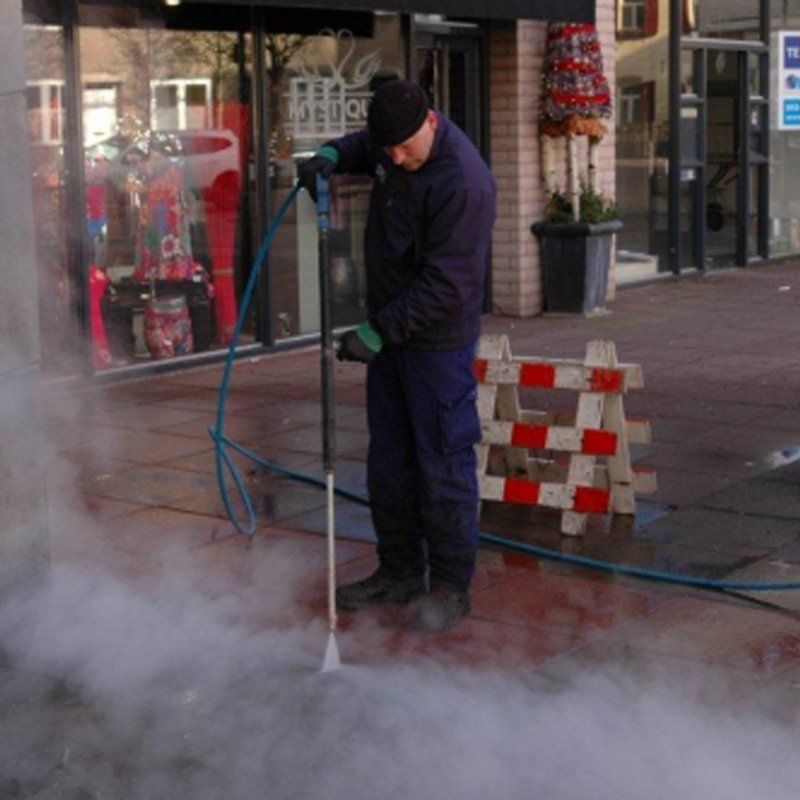

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removing gum with SteamPLUS
Meclean diesel powered high-pressure trailer HDT 350/18 DUO Facade cleaning with SteamPLUS

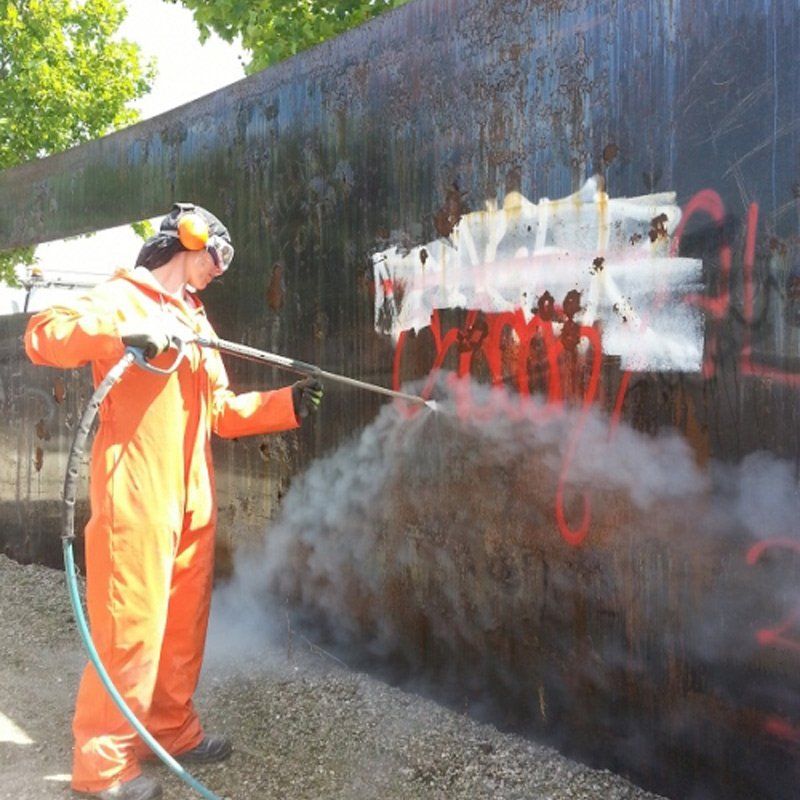

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removing graffiti with SteamPLUS

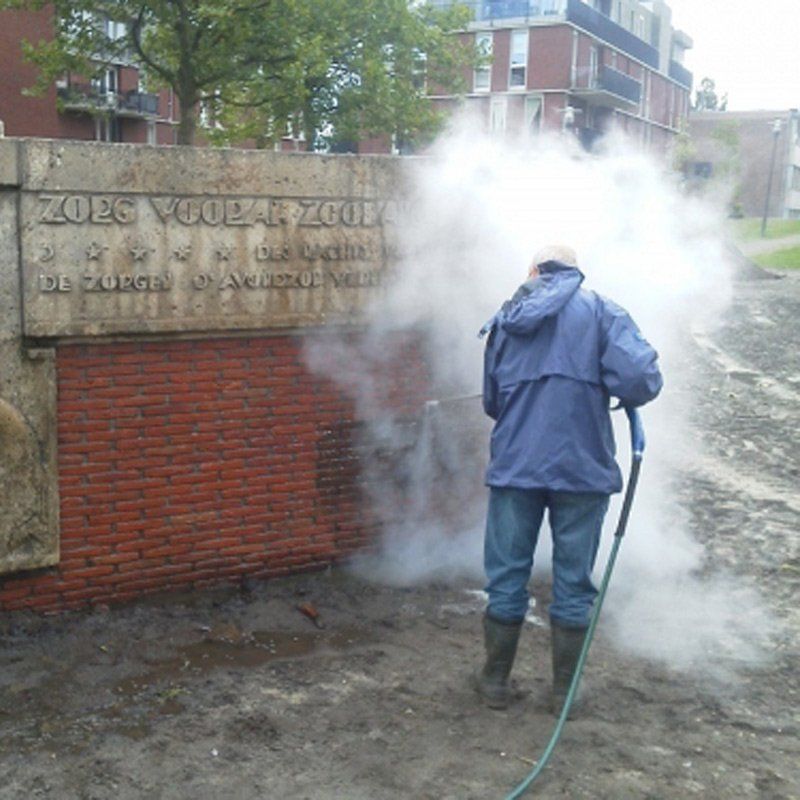

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Cleaning monumental objects with SteamPLUS

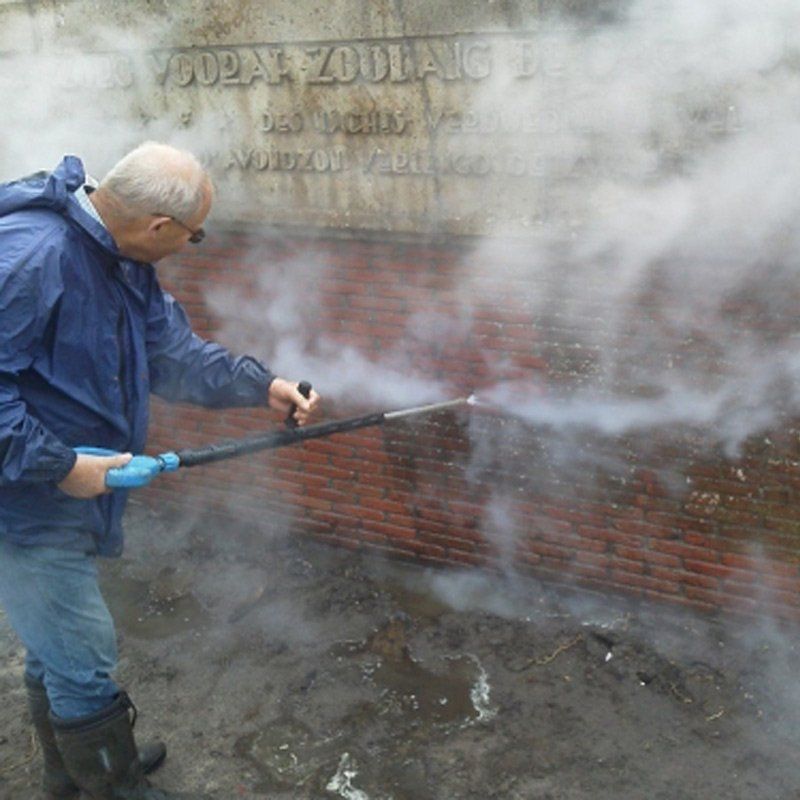

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Cleaning monumental objects with SteamPLUS

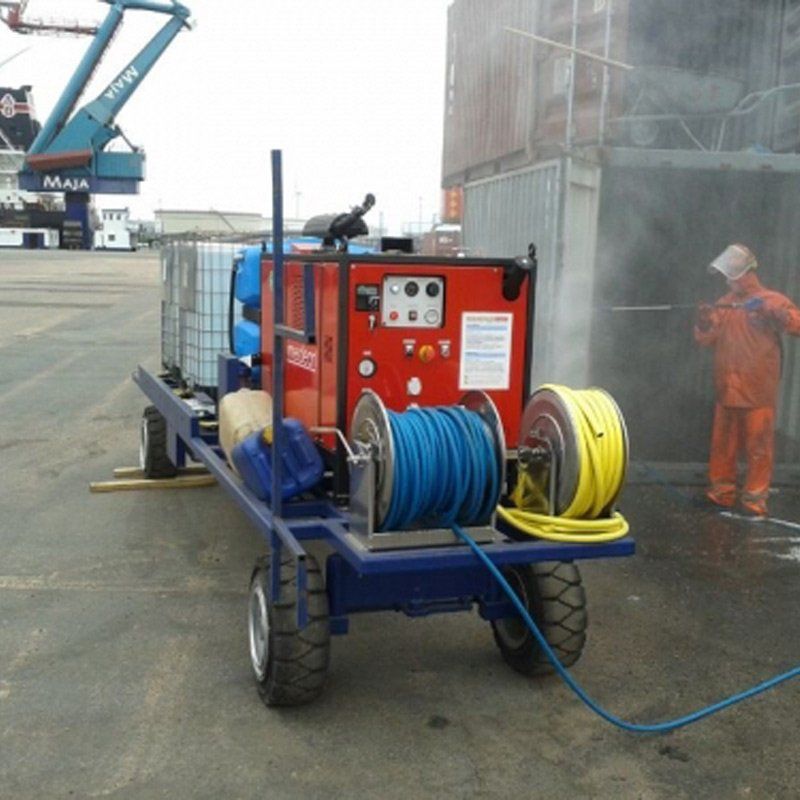

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Custom made trailer

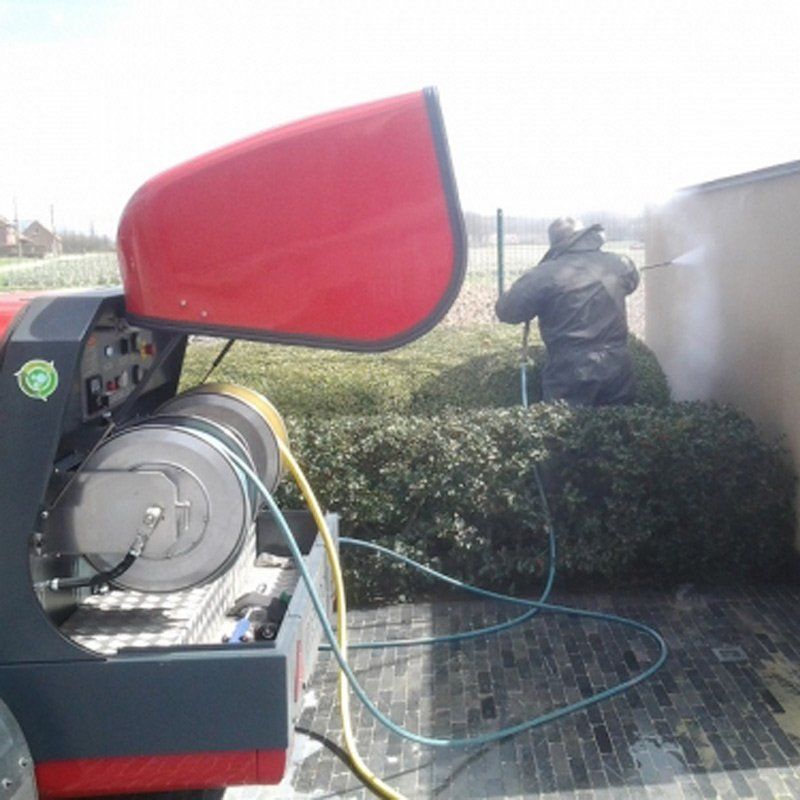

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Trailerjet in action

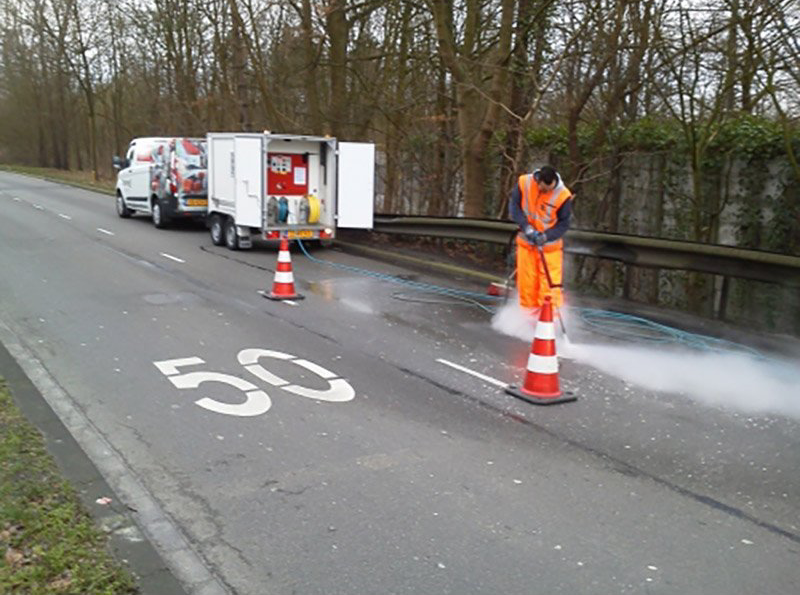

Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removal of road markings with SteamPLUS
Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removal of road markings with SteamPLUS
Meclean diesel powered high-pressure trailer HDT 350/18 DUO Removal of road markings with SteamPLUS
View more

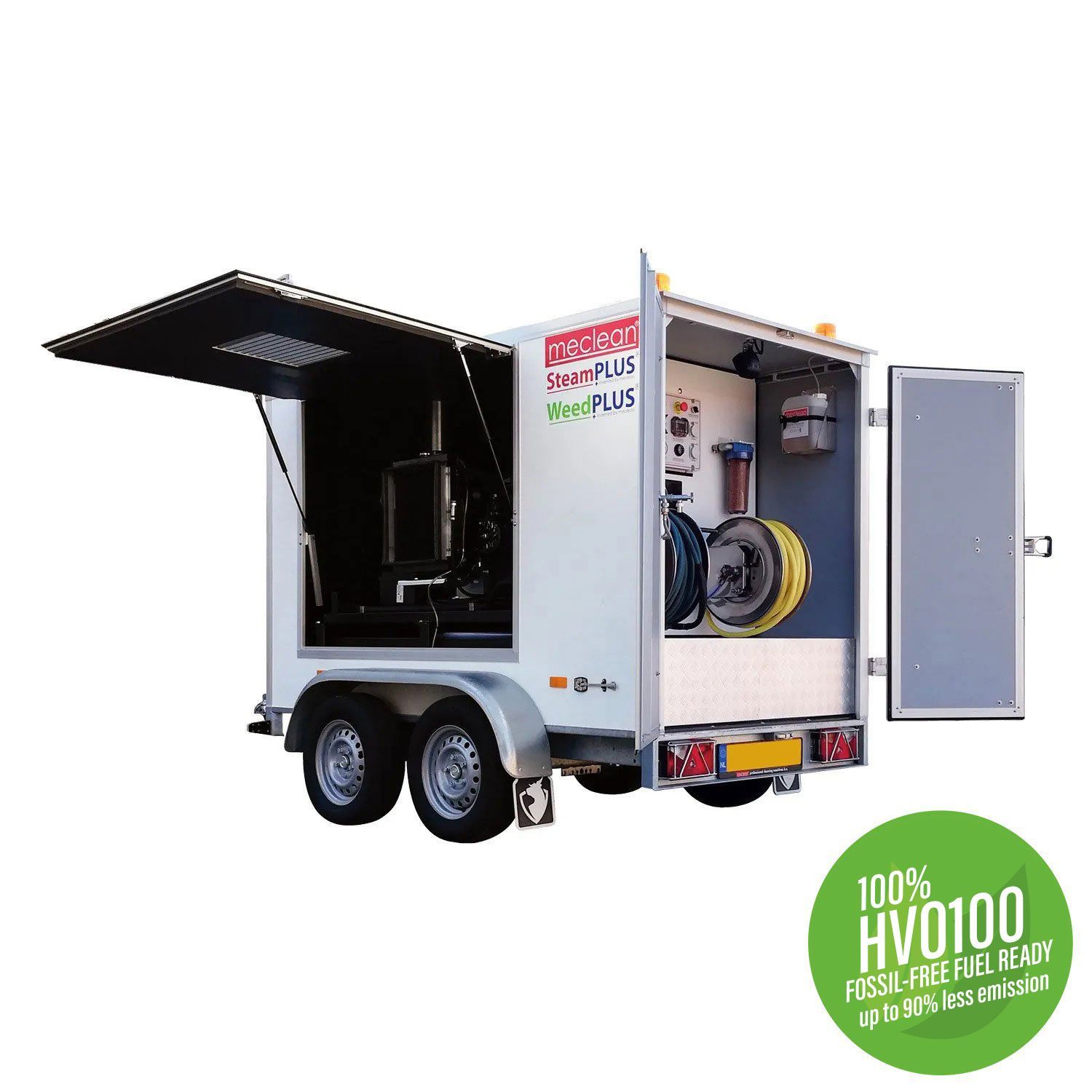

  • Also suitable for fossil-free fuels such as HVO100/XTL,
    NESTE, biodiesel (B100), Aspen diesel, GTL etc.
  • Operating pressure up to 2x 350 bar
  • Water flow 2x 18 L / min
  • Motor power 40 kW
  • Automatic speed control
  • Number of high-pressure pumps 2
  • Number of burners 2 (12V)
  • Max. burner power 2x 110 kW
  • Max. water temperature 102 ºC
  • Fuel tank capacity 110 L
  • Water tank capacity 1.000 L
  • Stainless steel high pressure reel 45 meters
  • Stainless steel low pressure reel 25 meters
  • Diesel engine drive
  • Dimensions 300 (L) x 130 (W) x 220 (H) cm
  • Registered weight (empty tanks) 2.000 kg
  • 2 year warranty (in combination with service agreement), 10 year warranty on high pressure pump head

  • SteamPLUS: high-pressure / steam function (250 bar, 150°C)
  • AquaPLUS: surface cleaning technique based on water / steam
  • WeedPLUS: hot water weed control function
  • HAPERT single axle trailer (instead of tandem axle)
  • Stainless steel reel with 100 meters high-pressure hose (â…ś”, double steel inlay)

  • SteamPLUS: high-pressure / steam function (250 bar, 150°C)
  • AquaPLUS: surface cleaning technique based on water / steam
  • WeedPLUS: hot water weed control function
  • Tap for washing hands, connecting hose etc. (incl. feed pump: 3 bar, 20 L/min)
  • Roof racks
  • Integrated aggregate 240V/ 4 kW  ( max. 6 Kw)
  • Anti calc system (with 12V dosing pump and reservoir 5 ltr.)
  • Extra sound insulation (inside trailer)
  • Flash lights (LED)
  • Working light (LED)
  • Taillight protectors
  • Remote controle (emergency stop)
  • Stainless steel reel with 100 mtr. high-pressure hose (â…ś”, double steel inlay)
  • Backwashing system (for water saving during heating up)
  • Shut-off valve for emptying / rinsing the water tank
  • Trailer painted in a different colour (in any RAL colour)
  • XL version with 1200 liters water tank and 155 liters fuel tank
  • SIR approval

  • Water tank capacity 1.400 L
  • Fuel tank capacity 155 L
  • Dimensions (L) 300 x (B) 130 x (H) 220 cm

  • Technical options

    •  SteamPLUS: high-pressure / steam function (250 bar, 150°C)

    •  AquaPLUS: surface cleaning technique based on water / steam

    •  WeedPLUS: hot water weed control function

    •  HAPERT single axle trailer (instead of tandem axle)

    •  Stainless steel reel with 100 meters high-pressure hose (â…ś”, double steel inlay)

  • Frequently chosen options

    •  SteamPLUS: high-pressure / steam function (250 bar, 150°C)

    •  AquaPLUS: surface cleaning technique based on water / steam

    •  WeedPLUS: hot water weed control function

    •  Tap for washing hands, connecting hose etc. (incl. feed pump: 3 bar, 20 L/min)

    •   Roof racks

    •  Integrated aggregate 240V/ 4 kW  ( max. 6 Kw)

    •  Anti calc system (with 12V dosing pump and reservoir 5 ltr.)

    •  Extra sound insulation (inside trailer)

    •  Flash lights (LED)

    •  Working light (LED)

    •  Taillight protectors

    •  Remote controle (emergency stop)

    •  Stainless steel reel with 100 mtr. high-pressure hose (â…ś”, double steel inlay)

    •  Backwashing system (for water saving during heating up)

    •  Shut-off valve for emptying / rinsing the water tank

    •  Trailer painted in a different colour (in any RAL colour)

    • XL version with 1200 liters water tank and 155 liters fuel tank

    • SIR approval

  • XL Update

    •  Water tank capacity 1.200 L

    •  Fuel tank capacity 155 L

    •  Dimensions (L) 250 x (B) 130 x (H) 220 cm

Model Water tank content Fuel tank capacity Dimensions
High-pressure trailer L 350/18 DUO 1.000 L 110 L (L) 300 x (B) 130 x (H) 220 cm
High-pressure trailer XL 350/18 DUO 1.400 L 155 L (L) 300 x (B) 130 x (H) 220 cm

This High-pressure trailer is also available in the following versions:
